3D SCANNING

Turn any physical object into an accurate 3D model

We capture real objects with a blue-laser 3D scanner, from a 5 mm clip to a 2 m panel. You get clean, usable files: a mesh for 3D printing, visuals and archiving, or a fully editable CAD model for engineering and manufacturing.

Get A Scanning Quote

0.02 mm

Accuracy, up to (blue-laser mode)

5mm-2mm

Object size range

STL - OBJ - STEP

Files delivered

From $90

3D Scanning

OUR SCANNER

Our 3D scanner: two modes for small and large objects

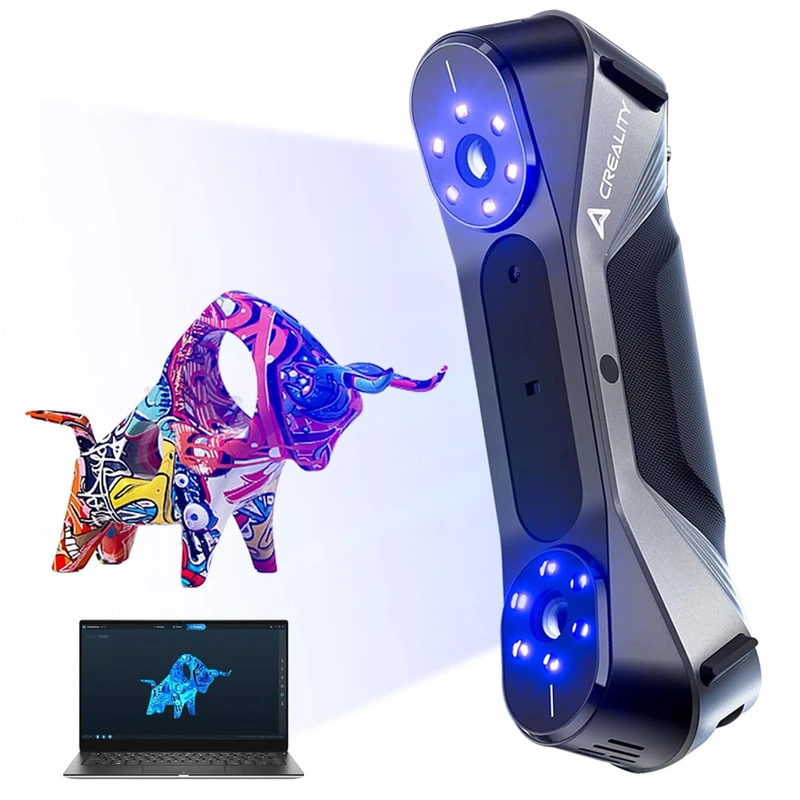

We scan with a Creality CR-Scan Raptor, a hybrid handheld scanner. It switches between a blue laser for fine detail and infrared light for big objects, so each part gets the right mode.

BLUE LASER

Fine detail, up to 0.02 mm

Seven parallel blue laser lines capture sharp edges, small features and fine texture. Blue light copes with dark and shiny surfaces much better than ordinary scanners, so many parts scan without any spray or prep. Small reference stickers on or around the part keep the scan aligned.

Best for: mechanical parts, small components, fine detail, dark or glossy objects.

INFRARED

Large objects, fast

Infrared structured light covers a much larger area in each pass, at up to 0.1 mm accuracy. On objects with plenty of shape or texture, it tracks the object itself, so no stickers are needed.

Best for: large parts and panels, bodywork, furniture, sculptures and other big objects.

WHAT YOU GET

3D scan files you can actually use

Scan Mesh

stl or obj

A cleaned-up triangle mesh of the object's surface: the fastest, most affordable result.

  • 3D printing a copy

  • Visuals, renders and online 3D views

  • Digital archiving and records

  • A reference for your own CAD work

CAD model

STEP or DWG

We rebuild the scan as an editable solid model with true flat faces, round holes and clean dimensions: a manufacture-ready file.

  • Reverse engineering

  • Machining, moulding and fabrication

  • Modifying or improving a design

  • Designing new parts that fit existing ones

A mesh is the object's surface made of thousands of tiny triangles. It captures every curve and detail exactly as the object is, which makes it ideal for printing, visuals and archiving.

It's hard to edit precisely, though. You can't simply change a hole size or a wall thickness.

Mesh or CAD: which do you need?

Scan and print

Scan, model and print

Need the physical thing, not only the file? We scan, model and 3D print it all in-house, from fine resin to large-format.

  • Replacing broken or discontinued parts

  • Copies, spares and short runs

  • Scaling an object up or down

A CAD model is built from real features: faces, holes, fillets and dimensions. Change the size of a hole and the model updates, just as it does for an engineer.

You need CAD for machining, manufacturing, technical drawings or modifying a design. Not sure which you need? Tell us what the file is for, and we'll recommend one.

WHAT PEOPLE SCAN

What we 3D scan: reverse engineering, design and more

Reverse engineering

Recreate discontinued parts, or design new parts that fit perfectly onto something that already exists.

Automotive, marine & RV

Body panels, dash pieces, brackets and trim, for restoration, custom mounts and aftermarket parts.

Product design & prototyping

Turn hand-made prototypes and clay models into digital files, or design accessories around an existing product.

Art & sculpture

Digitize finished work, or scan a maquette and scale it up or down for fabrication or casting.

Engineering & manufacturing

Capture real parts to design jigs, fixtures, mounts and guards that fit the first time.

Heritage & archiving

Preserve artifacts, heirlooms and historic architectural details as accurate digital records.

HOW IT WORKS

How 3D scanning works, in four steps

Tell us about it

Send a photo, the rough size and what you'll use the file for. That tells us which mode and which deliverable you need.

Get a quote

You'll get a price and timeline before we start: scanning from $90, and CAD modelling at $60 an hour if you need it.

We scan it

Bring the object to our studio at 281 Atwood Place in Kelowna. For something big that can't travel, ask us about scanning on-site.

You get your files

We clean and process the scan, build the CAD model if needed, and send files in the format you want. Need it printed? We do that too.

PRICING

3D scanning and CAD modelling pricing

Every job is quoted before we start, so there are no surprises.

PRICING

3D SCANNING SERVICES

CAD MODELLING SERVICES

$90/STARTING

$60/HOUR

  • 0.05mm Accuracy

  • 0.1mm Resolution

  • Up to 0.10mm Accuracy

  • Large Scanning Range

  • Ideal for 100-2000mm objects

  • Fast turn-around

  • Provide STEP, STL, OBJ and DWG

  • Accuracy guaranteed to +/- 0.01mm

  • Provide manufacture-ready files

GETTING A GREAT SCAN

Before you bring it in

Clean it. Dirt, grease and loose debris end up in the scan.

Bring what it fits onto. If fit matters, the mating part helps us get critical dimensions right.

Mark the important dimensions. Tell us which holes, faces or measurements have to be exact.

Mention clear or mirror-like surfaces. Glass, clear plastic and chrome may need a light, removable scanning spray. We always ask first.

Tell us how you'll use the file. It's the biggest factor in what we deliver and what it costs.

QUESTIONS

3D Scanning FAQ

  • Up to 0.02 mm in blue-laser mode and up to 0.1 mm in infrared mode, according to the manufacturer's specs. Smaller objects scanned in blue-laser mode are the most precise. For fit-critical features, we also confirm key dimensions by measuring the part.

  • Roughly 5 mm up to about 2 m. If your object is bigger, get in touch and we'll talk through the options.

  • Black and glossy surfaces are where blue laser really helps, and many scan with no prep at all. Clear glass, clear plastic and mirror-chrome usually need a thin, removable scanning spray. We'll always check with you before using it.

  • No. Scanning is non-contact and uses Class I eye-safe light. Reference markers are small removable stickers. For delicate or valuable items, we can place them around the object instead of on it.

  • STL and OBJ for scan meshes, and STEP and DWG for CAD models. If you need another format, ask.

  • Yes. Many engineers and designers only want the mesh as a reference, and that's our most affordable option.

  • Yes. We don't share your files or designs. If you need an NDA signed, mention it when you request a quote.

Get in Touch

Get a free 3D scanning quote

For a fast, accurate quote, include:

  1. A photo or two of the object

  2. Its approximate size

  3. What you'll use the file for: printing, CAD and reverse engineering, archiving or something else

  4. The file format you need, and your deadline
